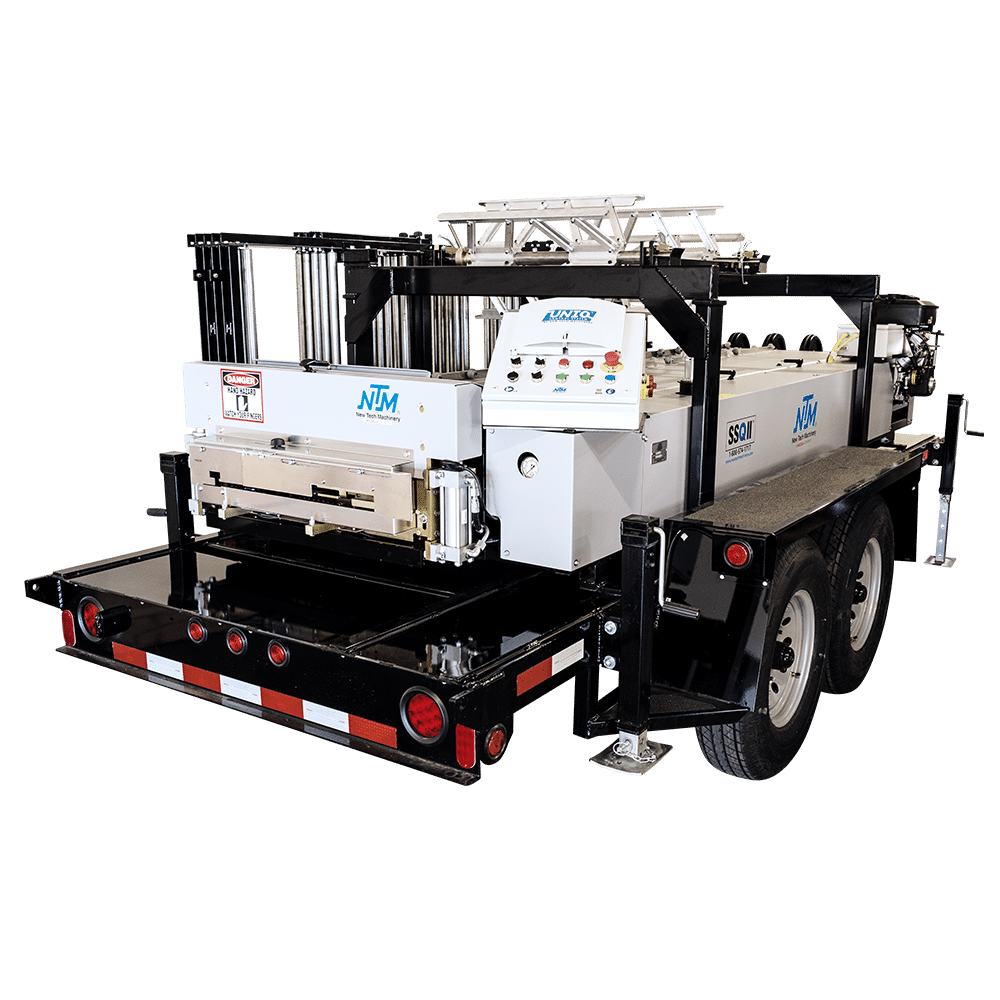

New Tech SSQ II™ Roof and Wall Panel Machine
The SSQ II™ MultiPro is the ultimate commercial and residential multi-profile roof panel machine, engineered for contractors who demand versatility, reliability, and precision. As the latest iteration of the best-selling multi-profile machine, it sets the standard for advanced, accurate, and user-friendly operation. Trust your business to the machine that contractors worldwide rely on to deliver exceptional results.
An Industry-Leading Solution for On-Site Panel Fabrication
With the ability to switch between 16 different profiles in 45 minutes or less, the SSQ II™ MultiPro empowers your team to tackle any project with unmatched efficiency. Its robust design and innovative features, including optional angle cutting and notching, streamline your workflow and expand your capabilities. Whether you're producing complex architectural panels or standard residential roofing, this machine delivers consistent quality and performance.
Key Features
- 16 Quick-Change Profiles: Unmatched versatility with 16 available profiles in one machine.
- Rapid Tooling Changes: Change tooling in 45 minutes or less with a single person and one wrench, maximizing uptime.
- Optional Notching & Angle Cutting: Enhance your fabrication capabilities with squared, profiled, and offset notching, plus an angled slitter for complex cuts.
- Intuitive Controls: Features push-button RUN/JOG controls at both ends and an optional UNIQ® Computer Control System for automated precision.
- Superior Durability: Built with a welded tubular steel frame, polyurethane drive rollers, and powder-coated covers for long-lasting performance.
- Industry's Best Warranty: Backed by a three-year parts and labor warranty for complete peace of mind.
Technical Specifications
| Feature | Description |
| Machine Dimensions (L x W) | 14’4” (4.4m) x 5’ 2” (1.57m) |
| Machine Weight | Approx. 2,830 lbs. (1,280 kg) |
| Speed | Up to 75 ft./min (23m/min) depending on power source and motor |
| Drive System | 16 polyurethane drive rollers, hydraulically driven via chain, sprocket & gear |
| Shear | Hydraulically powered, infinitely adjustable with hardened tool steel blades & dies |
| Control System | Standard manual control box; Optional UNIQ® Automatic Control System |
| Coil Width | 15” to 30” (381mm to 762mm) |
| Finished Panel Width | 12” to 24” (305mm to 610mm), variable by profile |
| Max. Coil Diameter | 32” (812mm) with Overhead Reel Rack; 45” (1,143mm) with Free Standing Decoiler |
| Power Options | Gas Power (16 HP Engine) or various electric motor options (1-Phase/3-Phase, 50Hz/60Hz) |
